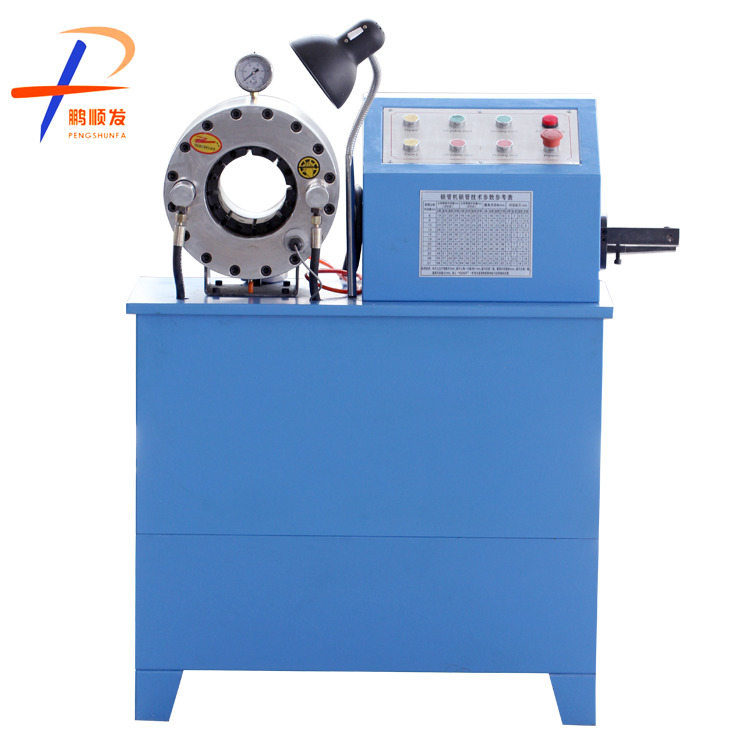

CE Certified Industrial Hose Crimper And Hose Crimping Machine

1 Set
MOQ
$1,650.00(1 - 4 Sets) $1,450.00(5 - 9 Sets) $1,300.00(>=10 Sets)
Price
CE Certified Industrial Hose Crimper And Hose Crimping Machine
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2020
Warranty Of Core Components: 1 Year
Core Components: Motor, Gear, Pump
Machine Type: Hose Crimping Machine
Voltage: 220V/380V
Dimension(L*W*H): 900*600*1200mm
Weight: 240kgs/ 260kgs
Warranty: 1 Year
Key Selling Points: Easy To Operate
Showroom Location: None
Applicable Industries: Manufacturing Plant, Machinery Repair Shops, Energy & Mining
After-sales Service Provided: Overseas Service Center Available, Free Spare Parts, Online Support, Video Technical Support
Feature: Multi-functional(with A Small Skiving Machine)
Hose Materials: Hydraulic Hose&rubber Pipe Hose
Certificate: ISO9001:2000,CE
Key Words: Hydraulic Hose Crimping Machine
Supplier: Pengshunfa
Package: Wooden Case
Guarantee: 12 Months
Package Dimension: 900*600*1200mm
Power: 3 KW/3.75 KW
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: None
Certification: CE
Basic Infomation
Certification: ISO9001:2000,CE, CE
Payment & Shipping Terms
Packaging Details: in wooden case
Supply Ability: 50 Set/Sets per Month hose crimping machine
Product Description
Crimping/Skiving range
6-51mm(1/4''-2''inner diameter of hose)
Quantity of dies
10sets crimping+10sets skiving
Rular Precision
0.01mm
Max Locking Force
236T
Dimension
970*540*1050(without wooden case)
Weight
310kgs/ 320kgs
Power
3kw/4kw 1,2,3 phase (Optional)
Working Voltage
220V/380V/415V(Customizable) 50/60Hz
Crimping hose
500T
Output volume of pump
2.5L/5L/10L(Optional)
Maximum open diameter
114mm
Work efficiency
200pcs/h
maximum open diameter
114mm
the max open tolerance
±30mm
package dimension
900*680*1450mm
machine dimension
860*640*1300mm
Net weight
310kg
Gross weight
320kg
The features of hydraulic hose clamping machine (PSF-51B)
1Stable and durable
2Fast speed and high efficiency
3Low noise and low maintenance cost
4High accuracy device
5The quantity expansion, suitable for different elbow Crimp
6The whole disassembling mold,fast&convenient
7The capping is safe, credible, tight, slick, good sealing.

The notice about the hydraulic hose clamping machine (PSF-51B)
1.Motor start:Pay attention to the direction of rotation of the motor and pump rotation direction or arrow direction.
2.Before the operation:Check the hydraulic oil tank .
3.Normal operation:For the first 30 minutes please do the running after normally begin to use the machine
4.Hydraulic oil:No any regulation for oil spill valve,the highest pressure must not exceed the rated pressure .Pressure
hazard!Danger of injury.
5.System failure:If system failure happen,do not blindly process.Please in accordance with the operation manual or sequence analysis to deal with the problems or find professional repair engineer to solve problems.
Tianjin Pengshunfa Hydraulic Equipment Co.,Ltd. established in 2003 ,which is a high technology enterprise, mainly manufactures and sells hydraulic rubber hoses ,hose crimping machines,hose cutting machines, hose skiving machines, hose fittings. Our products are extensively used to mine,metallurgy,construction machinery,chemical industry,communication and transportation,ship construction,textile industry,etc.The factory covers an area of 20,000 square meters.we have 125 workers.the factory have 8 production lines.Our products meet the national standard and passed the ISO9000,SGS,CE and the rest.We obtain our customers' trust by the advanced technology,excellent quality,first-class service.Our products have already been used by hundreds of large-middle enterprise.With the developing of high technology and the markets broad,our products have been recognized by oversea markets,such as Australia,UK,Germany,South Africa,New Zealand, Singapore,Malaysia,Korea,India,Brazil,etc.We have professional technical engineers,all the products are used with good material,such as good rubber, good steel, good electromagnetic valve,Pump, micrometer and so on.so the quality of the product can be guaranteed. We sincerely hope that we can establish the relationship with cooperation partner by virtue of our various of products,quick response,and professional service.
Q: There are many unqualified carpet in the market, how can you make sure your quality control?
A: We have past, ISO:9001, CE certification, and we are Alibaba 8 years' Gold As-sessed Supplier, Every carton of goods quallty would be checked on twice strictily before shipping, and the quality inspection report will be sent to our customers with the products.If the product has quality problems, we promise to compensate accordingly, no more than 5% of the order amount.

Q: How about your production capacity, and how can you make sure my goods would be delivery timely?
A: We have our own large factory,20,000 square meters, more than 100 workers, and 50 millions products per year

Q: How about your design ability? Do you offer OEM service?
A: We have our own design department, more than 10 engineer.OEM accept and we offer confidentiality agreement "business secret contract" for your design safe.

Q: Can I place one small order for first time to test the quality?
A: Small order are also welcomed, and we offer free sample to test our products quality.

Q: Can I visit your factory?
A:Welcome to visit our factory.
